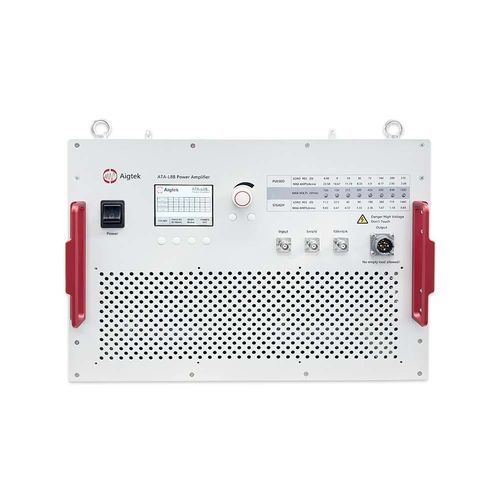

功率放大器 ATA-L8信号数字单一通道
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 类型
- 信号, 功率
- 其他特性
- 数字, 电压输出, 单一通道, 台式, 手提式
- 电压
1,020 V
- 功率
1,000 W
- 频率
最多: 120,000 Hz
最少: 200 Hz
产品介绍
ATA-L8 is an ideal single-channel power amplifier.matching with the mainstream signal generator, realize perfect signal amplification.
Input
The input is BNC interface,single-end intput.
LCD Displays
ATA-L8 is provided with LCD to display the equipment state and parameters dynamically, the operation interface is clear at a glance, concise and easy to understand.
Monitor
Output current monitor:100mV/A
Output voltage monitor:10mV/V
Output interface is BNC that can be directly connected to the oscilloscope for real-time monitoring
