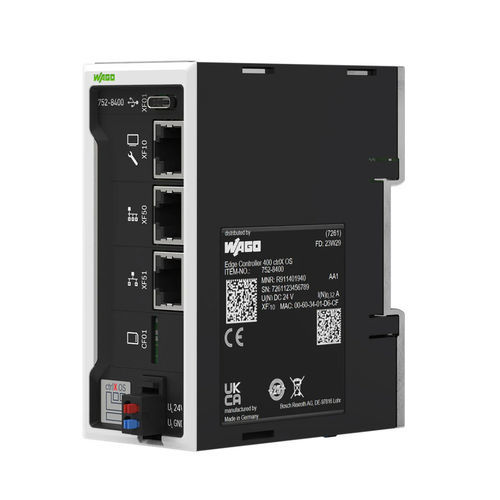

自动化设备控制器 752-8400

操作系统 - ctrlX OS 处理器 - Zynq UltraScale+, 64 bits, 4 × ARM A53 主存储器(RAM) - 2 GB, DRAM 内存(flash) - 4 GB, eMMC 保持型硬件内存 - 128kbyte 存储卡类型 - microSD最高达32 GB(只有当与万可内存卡一起使用时,所有保证的性能才有效。) 接口(USB) - 1 x USB host, type C (USB2.0), maximum cable length: 3 m 供电电压 - 24 VDC, SELV/PELV (18 … 31.2 V); (includes all tolerances, including ripple); Internal fuse protection with eFuse, 1.5 A; Overvoltage protection: the fuse can trip in the event of overvoltage; Transient protection: suppressor diodes; Pulse load up to 1500 W; Voltage drops on power supply interfaces: PS1 < 1 ms; Evaluation criterion A 过电压类别 - 2 per IEC 60664-1 典型电流消耗 - 320 mA 典型功率消耗(24 V) - 7.68W 隔离 - 707 VDC (24 V supply to functional ground); 1200 VDC (24 V supply to XF10, XF50, XF51)
