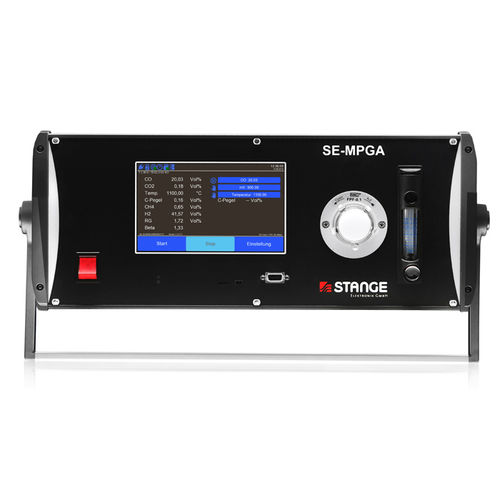

气体分析仪

浓度温度手动

Features Transportable gas analysis system for carburizing atmosphere The device continuously measures the gas components CO, CO2, CH4 and H2 in carburizing atmospheres. The C-level, the soot limit and the gas constant Beta are calculated from the measured values. For comparative measurement according to CQI9, the C-level is calculated in parallel on the basis of the probe signal. A zirconium dioxide probe and a type S thermocouple can be connected for this purpose. Probe signal and temperature can also be simulated by manual input. All measured and calculated values are shown on the display and can be logged in the device for later evaluation. The recording can be controlled manually or by timer. Included in delivery is the PC software MPGA-Logger, with which the data can be read out, evaluated, printed or e.g. exported into the ECS format. The new version of the gas analysis system has a capacitive touch display with a size of 7 inches (17.8 cm) and can now be operated even better. With the internal timers, up to 3 potential-free external contacts can now be optionally switched, which can be used for control tasks, e.g. recording of several furnace systems by cyclic switching of the gas supply. Optionally, the measurement data can now also be provided externally via 4-20 mA outputs. Fields of application: Gas analysis of carburizing processes, verification of endogas Comparative measurements according to CQI9 Compliant with SAE AMS 2759
