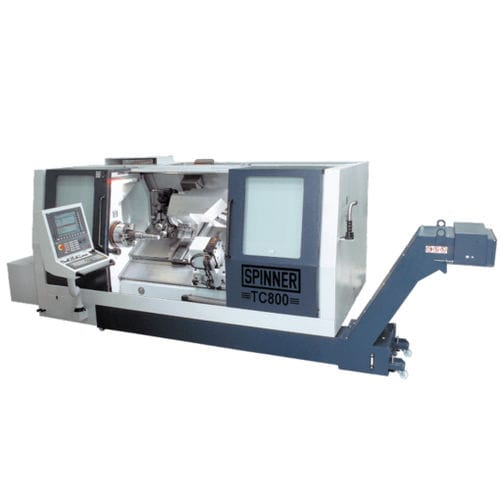

CNC数控车床 TC series

卧式3轴刚性

最多: 500 mm
(19.69 in)

最少: 1 mm
(0.04 in)

最多: 7,000 rpm
(43,982.297 rad.min-1)

最少: 0 rpm
(0 rad.min-1)

180 mm, 200 mm, 275 mm, 360 mm
(7 in, 8 in, 11 in, 14 in)

450 mm, 515 mm, 700 mm, 900 mm, 1,580 mm
(18 in, 20 in, 28 in, 35 in, 62 in)

2,195 mm, 2,430 mm, 2,800 mm, 4,700 mm, 5,750 mm
(86 in, 96 in, 110 in, 185 in, 226 in)

1,350 mm, 1,700 mm, 1,750 mm, 1,980 mm
(53 in, 67 in, 69 in, 78 in)

1,865 mm, 2,090 mm, 2,115 mm, 2,165 mm
(73 in, 82 in, 83 in, 85 in)

3,000 kg, 4,200 kg, 6,300 kg, 7,500 kg, 8,500 kg
(6,614 lb, 9,259 lb, 13,889 lb, 16,535 lb, 18,739 lb)
