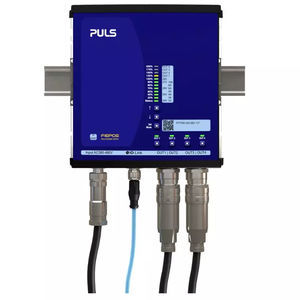

AC/DC开关电源 FPS300.241-002-101

可调节单相DIN导轨

功率因数 - 0.97 输入浪涌电流抑制 - NTC 输入浪涌电流 - 3 A / 7 A 外部输入保险丝推荐 - B-6 A / C-6 A 输出数据 功率储备 - 600 W (up to 5s) 降额 - 10 W/°C 为 +55 to +70 °C 电压纹波与噪声 最大值 - 50 mVpp 概述 尺寸（宽x高x深） - 182 mm x 183 mm x 59 mm Weight per unit (excl. packaging) - 1200 g 工作温度范围 - -25 °C 至 70 °C 连接端子类型 - Input: HanQ4/2 | Output: HanQ4/0 转换效率，典型值 - 95.6 % 功率损耗，典型值 - 16.2 W DC-OK信号 - 有 600 Wpeak 5s 100-240V wide-range input 95.6 % full load and excellent partial load efficiencies DIN rail mounting possible, option “D” Output connected to PE (PELV) Version without connection to PE on request Large output capacitors Not potted Negligible low input inrush current surge DC-OK relay contact Input HanQ4/2 / Output HanQ4/0
