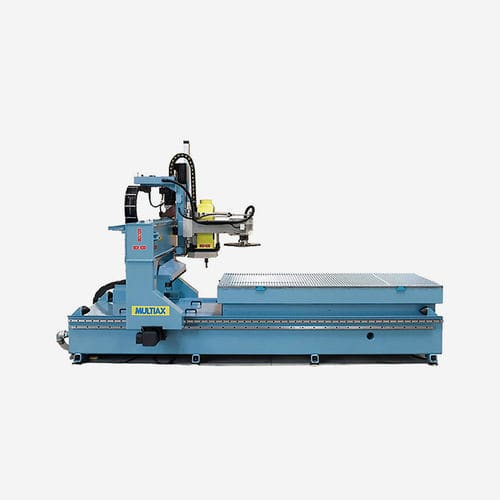

移动门架CNC加工中心 N series3轴5轴4轴
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 轴数量
- 3轴, 5轴, 4轴, 6轴
- 卧式／立式
- 立式
- 结构
- 移动门架, 移动台式, 固定台式
- 加工材料
- 用于铝, 用于有色金属, 用于黄铜, 用于复合材料, 用于木材, 用于塑料
- 主轴数量
- 二机轴, 3机轴, 4机轴
- 主轴头
- HSK A-63, HSKF63
- 工具数量
- 32工具, 16工具, 8工具
- 相关功能
- 倒角加工, 切割, 钻孔
- 应用
- 用于汽车工业, 用于航空工业, 用于门, 用于泡沫, 用于家具, 用于航空工程, 用于门窗, 用于木材行业, 板材, 用于型材, 用于铝制型材, 用于塑料加工业, 用于铝材工业
- 其他特性
- 模块化, 高速, 紧凑型, 高效率, 高精度切割, 变速, 刚性, CE, 双工作站, 多机轴, 超声波, 倾斜头, 控制台式
- X轴
最少: 1,800 mm
(70.87 in)最多: 3,800 mm
(149.61 in)- Y轴
最少: 1,800 mm
(70.87 in)最多: 16,000 mm
(629.92 in)- Z轴
最少: 250 mm
(9.84 in)最多: 1,200 mm
(47.24 in)- 转速
最少: 18,000 rpm
(113,097 rad.min-1)最多: 24,000 rpm
(150,796 rad.min-1)- 输出功率
最少: 10 kW
(13.6 hp)最多: 15 kW
(20.39 hp)- X轴进给速度
60,000 mm/min
(39 in/s)- Y轴进给速度
60,000 mm/min
(39 in/s)- Z轴进给速度
40 mm/min
(0 in/s)- 放置精度
最少: 25 µm
最多: 50 µm
- 重复精度
最少: 12 µm
最多: 23 µm
- 换刀时间
最少: 8 s
最多: 16 s
- 总重量
最少: 4,500 kg
(9,920.8 lb)最多: 22,000 kg
(48,501.7 lb)
产品介绍
This machine type specially features a moving bridge with twin servo drives at both ends and is structured in different versions with different designs and weights for several applications: from nesting of aluminum stacked sheets to machining of long components. The structure of the N series is also used to configure highly customized multiple head, often feed-through machines to meet high volume series productions. This machine type is structured in different versions with different design and weight to be configured for several applications: from nesting of aluminum stacked sheets to machining of long components. The structure of the N series is also used to configure highly customized multiple head, often feed-through machines to meet high volume series productions.
