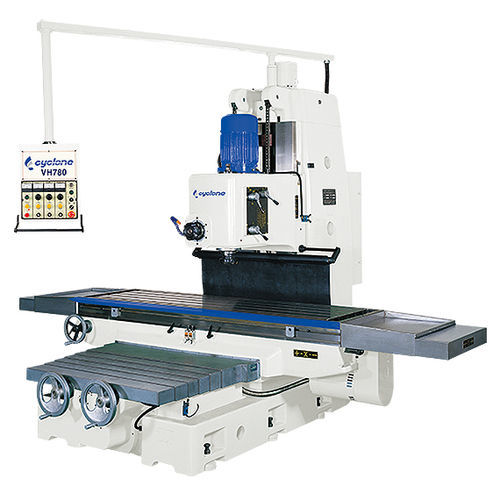

3轴数控铣床 VH series

立式卧式立柱

1,100 mm, 1,300 mm, 1,500 mm, 1,700 mm, 2,000 mm
(43.31 in, 51.18 in, 59.06 in, 66.93 in, 78.74 in)

720 mm, 850 mm, 900 mm, 1,000 mm, 1,050 mm
(28.35 in, 33.46 in, 35.43 in, 39.37 in, 41.34 in)

780 mm, 800 mm, 900 mm, 1,000 mm
(30.71 in, 31.5 in, 35.43 in, 39.37 in)

最少: 45 rpm
(283 rad.min-1)

最多: 1,500 rpm
(9,425 rad.min-1)

10 W, 15 W
(0.01 hp, 15 hp)

最少: 25 mm/min
(0 in/s)

最多: 2,800 mm/min
(2 in/s)

最少: 25 mm/min
(0 in/s)

最多: 2,800 mm/min
(2 in/s)

25 mm/min, 1,000 mm/min, 1,500 mm/min, 2,500 mm/min
(0 in/s, 1 in/s, 1 in/s, 2 in/s)

最少: 25 mm/min
(0 in/s)

最多: 2,500 mm/min
(2 in/s)

1,000 kg, 1,500 kg, 2,000 kg, 3,000 kg
(2,205 lb, 3,307 lb, 4,409 lb, 6,614 lb)

最少: 4,200 kg
(9,259.42 lb)

最多: 16,000 kg
(35,273.96 lb)

最少: 2,550 mm
(100.4 in)

最多: 3,790 mm
(149.2 in)

2,030 mm, 2,280 mm, 2,520 mm, 2,790 mm, 3,210 mm
(79.9 in, 89.8 in, 99.2 in, 109.8 in, 126.4 in)

2,550 mm, 2,960 mm, 2,970 mm, 3,300 mm
(100.4 in, 116.5 in, 116.9 in, 129.9 in)
