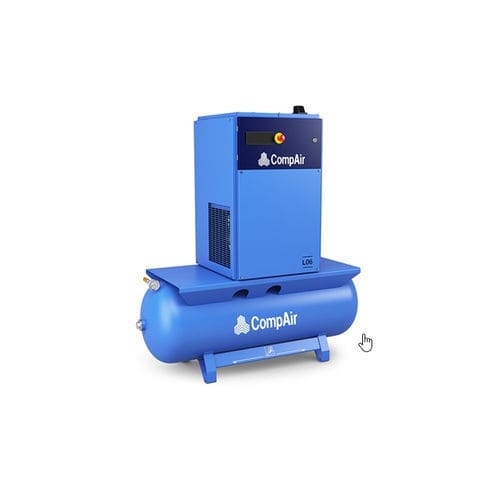

螺杆压缩机 L series

空气电动固定式

270 l, 500 l
(71.3 gal, 132.1 gal)

10 bar
(145.04 psi)

最多: 0.89 m³/min
(31.43 ft³/min)

最少: 0.18 m³/min
(6.36 ft³/min)

最多: 7.5 kW
(10.2 hp)

最少: 2.2 kW
(2.99 hp)

600 mm, 1,539 mm, 1,885 mm
(24 in, 61 in, 74 in)

650 mm, 720 mm
(26 in, 28 in)

1,100 mm, 1,604 mm, 1,700 mm
(43 in, 63 in, 67 in)

最多: 364 kg
(802.5 lb)

最少: 151 kg
(332.9 lb)

63 dB, 64 dB, 67 dB, 68 dB, 70 dB
